Pneumatic Auto Guide System  (Piston Type)

Pneumatic Auto Guide System (Piston Type)

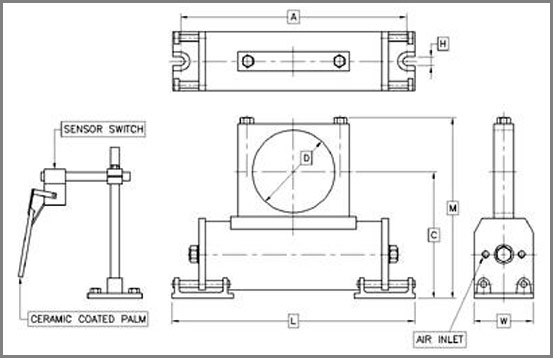

TYPE
D
L
W
A
H
C
M
RXP-150
150
525
145
485
20
265
370
RXP-170
170
525
145
485
20
275
395
RXP-190
190
565
170
525
26
300
425

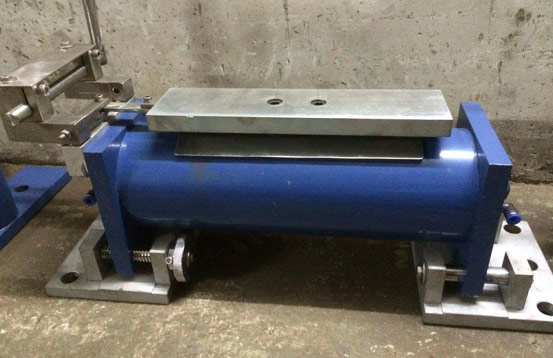

The Pneumatic Auto Guide System (Piston Type) are designed for use in wire, press and dryer section of paper machines. All piston guides have a compact, enclosed design.

Pneumatic Auto Guide System (Piston Type)

Features :

  1. The portion of sensing palm that comes in contact with the fabric is fitted with a ceramic coated strip thus giving a very long life to the palm and also avoids any damage to the fabric due to wear on the sensing palm.
  2. Suitable for wires, felts & dryer fabrics
  3. Normal working pressure @ 3.0 Kg/cm2
  4. Adjustable stroke, maximum stroke upto 60 mm on either side
  5. Returns to central or present position in the event of air system failure
  6. Built in manual over ride.

Advantages :

  1. Robust, enclosed design
  2. Mechanical feedback unit for excellent guiding results
  3. Low internal friction
  4. Flexible mounting position
  5. Maintenance friendly
