Intensa Pulper IP-RC Energy-efficient pulping of virgin fibers

Intensa Pulper IP-RC

Most efficient pulping process

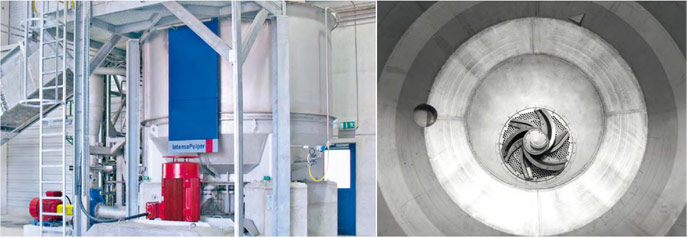

The purpose of pulping is to efficiently break down the raw material. Intensa Pulper IP-RV developed by RRK is a pulper that offers especially energy-efficient pulping of virgin fibers, clean recovered paper or broke in batch or continuous mode. The flow-optimized vat shape combined with the eccentrically arranged rotor creates intensive turbulence. This results in an improved mixing of the suspension and an accelerated bale intake.

Energy savings of up to 30%

In combination with the RRK IPR Rotor, energy savings of up to 30% are achieved. In addition, the eccentric rotor arrange-ment enables a low-loss flow and installations that cause flow losses are avoided.

The IPV Rotor also allows intensive circulation of the stock in the pulper vat, while the defibering function of the rotor is substantially improved.

Integrated bale breaker and junk trap The bale breaker ensures fast and reliable dividing of the bales. Heavy parts such as occasional pieces of wire are separated using a junk trap. The option to automate this process is available.

BlueLine - sustainable solutions for the future Because it offers high energy savings, IntensaPulper IP-R is part of our new BlueLine product range. With BlueLine, customers benefit from proven RRK quality and reliability and at the same time low energy, fiber, water and maintenance costs.

Your benefits IntensaPulper IP-R

  • ++Up to 30% energy savings thanks to energy-efficient pulping
  • ++High pulping stock consistency
  • ++Uniform pulping quality
  • ++Stable operating conditions
  • ++Long maintenance intervals
  • ++Pulping process gentle on fibers

Technical data IntensaPulper IP-RV

Installed size IP-V

12
17
26
32
40
50
65
85
107











Working volume periodic
[m³]
12
17
26
32
40
50
65
85
107











Working volume continuous
 [m³]
10
15
23
28
36
46
59
79
99









Installation height
[mm]
3,800
4,500
4,600
4,800
5,200
5,600
6,100
6,500
6,800











Diameter of vessel
[mm]
2,800
2,900
3,600
3,840
4,300
4,300
5,000
5,200
5,800











Motor power
[kW]
75
90
110
132
160
200
250
315
400











Motor power
[hp]
100
125
150
200
250
300
350
400
500
