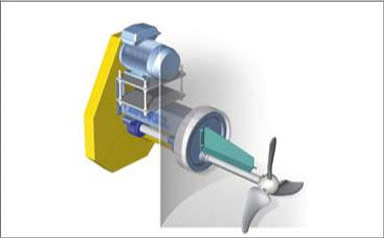

The RRK Turbo Mix is a horizontal agitator, suitable for all kind of fibers in chests, tanks and storage towers up to a consistency of 6% in the propeller area. Turbo Mix is the ideal device for high and effective agitation due to hydraulically optimized propeller blades and conspiring chest shapes and sizes.
The RRK Turbo Mix provides highest process flexibility due to adjustable blade angles and wide motor range. Belt drive and universal guard allow quick and easy speed changes. The stuffing box can be replaced without draining the chest.
RRK Turbo Mix |
RTM600 |
RTM 800 |
RTM 1000 |
RTM 1300 |
RTM 1600 |
RTM 2000 |
Propeller diameter [mm] / [inch] |
600 / 24 |
800 / 31 |
1000 / 39 |
1300 / 51 |
1600 / 63 |
2000 / 79 |
Maximum propeller speed [min-1] |
320 |
308 |
260 |
200 |
143 |
105 |
Installed maximum power [kW] / [HP] |
5.5 / 7 |
15 / 20 |
30 / 40 |
55 / 75 |
90 / 120 |
110 / 150 |
Drive speed [min-1] (50 Hz) |
1000 |
1000 |
1000 |
1000 |
1500 |
1500 |
Drive speed [min-1] (60 Hz) |
1200 |
1200 |
1200 |
1200 |
1800 |
1800 |
