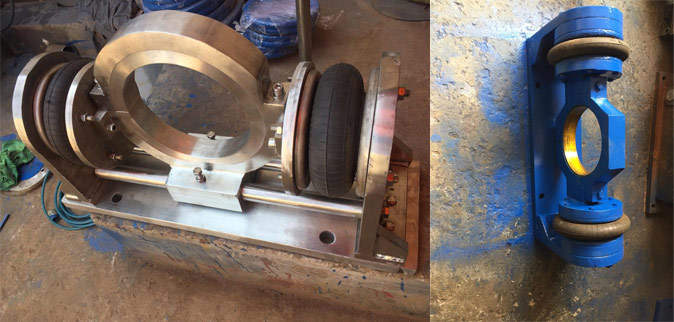

Pneumatic Auto Guide System

Pneumatic Auto Guide System
TYPE
D
L
W
A
B
H (hole)
C
M
WEIGHT (APRX.)
RX -120
120
670
140
620
100
20 ø
305
430
120 kg
RX -190
190
850
170
775
100
20 ø
350
505
225 kg

Felt and Wire Auto Guide Systems are designed to keep the wire running properly in the center of the roll over which it travels. If you loose control over your wire felt or fabric, the cost incurred in damaged clothing is high. Lost production can make such accidents extremely irritating and costly.

Installing the reliable and well proven automatic wire and felt guiding system represents an easy way and inexpensive way to avoid this problem. It comprises of an actuator and pneumatic controller with ceramic coated palm assembly, the Auto Guide works without sliding surfaces.

Advantages :

  1. Avoid Fabric run off
  2. Minimize fabric edge wear
  3. Reach Maximum fabric wear life
  4. Reduce sheet breaks
  5. Optimize paper productivity

Salient Features :

  1. Immediate response to any movement of the clothing in the cross machine direction without overcompensation
  2. Very few moving parts and little need for maintenance work.
  3. Moving parts are fully enclosed for complete protection against water, fiber and dust
  4. Extremely low compressed air consumption, normal working pressure @ 3.0 kg/cm2
  5. Suited for installation in any position- horizontal, vertical, inclined or even upside down.
  6. Easy to install and operate.
  7. No adjustment required before start up
  8. Built in manual over ride
